Product Description
Description

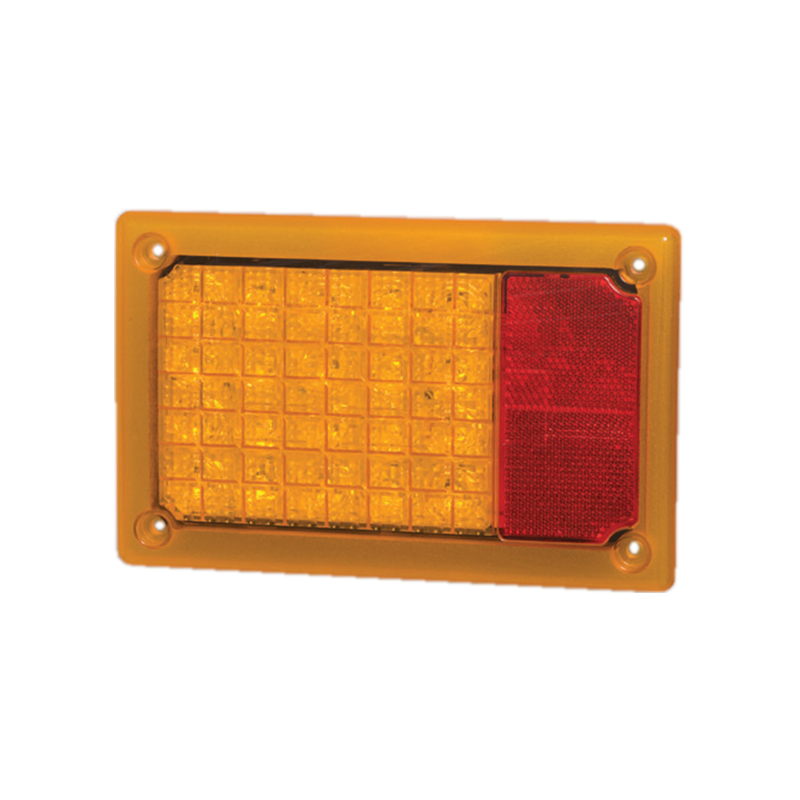

With ultra heavy duty construction the Perei Jumbo range of combination lamps offers ultimate quality, durability and reliability. Designed specifically for heavy duty applications these lamps feature high heat and enhanced chemical protection to perform in harsh operating conditions. The single lamp features a high strength ABS base with one rear direction indicator module and integrated reflector.Designed for horizontal or vertical mounting options, this Series is specifically suited to OE and heavy vehicle applications.
Features
•Ultra heavy duty construction•Designed for harsh environments•Modular LED system•Enhanced chemical protection•Fully ADR Compliant
Specifications
Specifications
| Applications | •Trucks •Heavy Trailers •Trailers •RV •Bus & Coach | ||
| Functions | Stop / Rear Position / Rear Direction Indicator / Reverse / Rear Reflector | ||
| Voltage | 9-33V DC VarivoltÆ | ||
| Wattage | Rear Direction Indicator:6.82W@12V | ||
| Mounting | Surface Mount, Modular System | ||
| Materials | Lens: Polycarbonate with ECP Base: Heavy Duty ABS | ||
| Environmental | IP67 Hermetically Sealed | ||
| Cable Length | 0.2M Per Module | ||
| Dimensions | 194x122x35mm | ||
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Reflector:47/00 | ||
| CRN Certification | Functions | Standard Version | Slimline Version |
| Directional Indicator | 28133 | 36723 | |
| Stop | 28135 | 36698 | |
| Rear Position | 28136 | 36699 | |
| Reverse (Horizontal Mount) | 32876 | 36726 | |
| Reverse (Vertical Mount) | N/A | 36727 | |
| Reflex Reflector | 28134 | 28134 | |
Parts List
| FL500LED | Jumbo Rear Direction Indicator / Reflector Module 9-33V |
| FL500LEDS | Jumbo Rear Direction Indicator / Reflector Module 9-33V(Slimline) |
| SL500LED | Jumbo Base Triple - High Strength ABS - Box |
| SL500LEDS | Jumbo Stop / Rear Position / Reflector Module 9-33V - Box(Slimline) |
| RV500LEDH | Jumbo Reverse - Horizontal Mount / Reflector Module 9-33V |
| RV500LEDSH | Jumbo Reverse - Horizontal Mount / Reflector Module 9-33V(Slimline) |
| RV500LEDSV | Jumbo Reverse - Vertical Mount / Reflector Module 9-33V(Slimline/Vertical Mount) |
| MODULE WITH SINGLE BASE | |
| CRL501ALED | Single Jumbo 1x Rear Indicator / Reflector Black Base 9-33V - Box |
| CRL501ALEDS | Single Jumbo 1x Rear Indicator / Reflector Black Base 9-33V - Box(Slimline) |
| CRL501RLED | Single Jumbo 1x Stop / Tail / Reflector Black Base 9-33V - Box |
| CRL501RLEDS | Single Jumbo 1x Stop / Tail / Reflector Black Base 9-33V - Box(Slimline) |
| CRL501RVLEDH | Single Jumbo 1x Reverse / Reflector Black Base 9-33V - Box |
| CRL501RVLEDSH | Single Jumbo 1x Reverse / Reflector Black Base 9-33V - Box(Slimline) |
| CRL501RVLEDSV | Single Jumbo 1x Reverse / Reflector Black Base 9-33V - Box(Slimline/Vertical Mount) |
