Product Description

Description

The 95 series LED modules feature a crystal optics lens design and a common dimensional profile enabling the lamp to suit a wide variety of applications. This lamp can be used with modupods to create a custom combination solution or individually as a flush mount with a surface mount option using the single modupod plinth. The dimensions of the 95 series also allow for retrofit upgrade or replacement of similar lamps. Suited to OE and heavy-duty applications. Connector options are also available.



Features

  • • Crystal optic lens for common visual appearance across all model functions
  • • Dimensional profile suits many applications & retrofit situations
  • • Can create combination lamps with monopods
  • • Fully ADR compliant

Specifications

Specifications

Voltage: 12V or 24
Power: Stop:4.92W / Position:2.92W / Direction:4.92W
Lens: High Impact PMMA
Housing: ABS
Mounting: Surface mount or Modupod
Environmental: IP67

Parts List

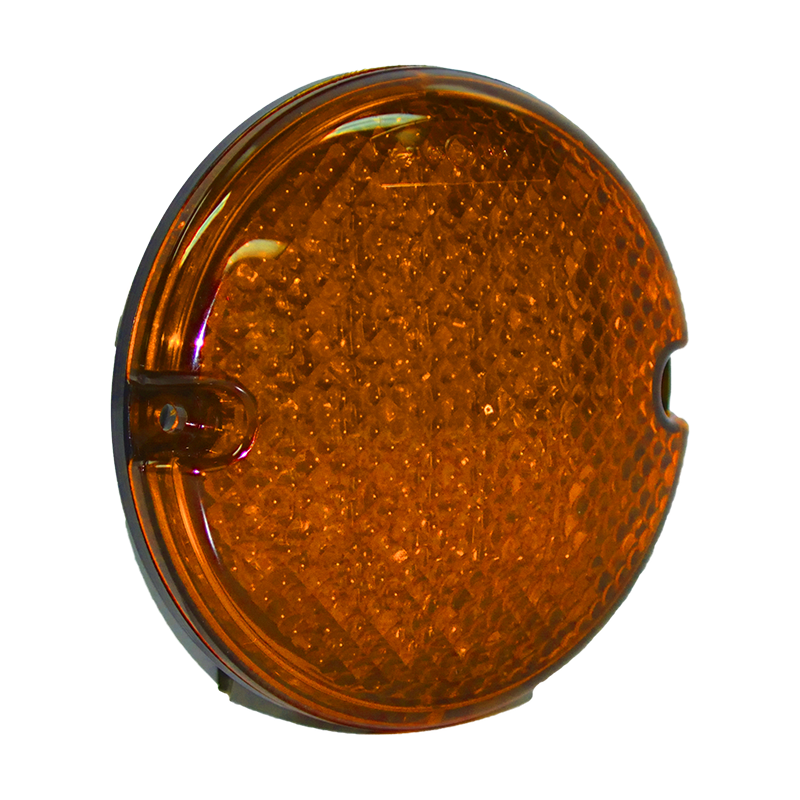

FL24LED-12 LED Lamp, round Amber Front Flasher 12V
FL24LED-24 LED Lamp, round Amber Front Flasher 24V
FL25LED-12 LED Lamp, round Amber Rear Flasher 12V
FL25LED-24 LED Lamp, round Amber Rear Flasher 24V
SL9LED-12 Red LED Lamp, Stop/Tail 12V
SL9LED-24 Red LED Lamp, Stop/Tail 24V
RL800LED Clear LED Reverse Lamp
GR25LED-24 95mm Green Round LED Lamp 24V
