Product Description

Description

Featuring free form optics in a smart slim line design the CRL190LED series are robust multifunction lamps that can be mounted in areas where space is limited. The lamps use VarivoltÆ 10-30V circuit technology and incorporate stop, tail, indicator, reverse and reflector functions providing an all in one solution. The high output SMD LED technology together with the smart optic design enables these lamps to comply with all the above functions with their slim line dimensions. Excellent for mine bars, trailer / ute lamps or commercial / industrial applications.



Features

  • • Slim line design - multifunction
  • • Free form optics
  • • Surface mounting
  • • Retrofit applications
  • • Fully ADR compliant

Specifications

Specifications

Applications •Minebars •Vehicles •Forklifts •Light Trucks •Trucks
Functions Stop / Rear Position / Direction Indicator / Reverse / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Rear Direction:1.5W@12V

Rear Position: 0.5W@12V

Stop Lamp:2.5W@12V

Reverse:2.0W@12V
Mounting Surface Mount
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.4M Standard
Dimensions 191x49x28mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00, Reverse:1/00
Homologation Certification ECE (Emark)
CRN Pending

Parts List

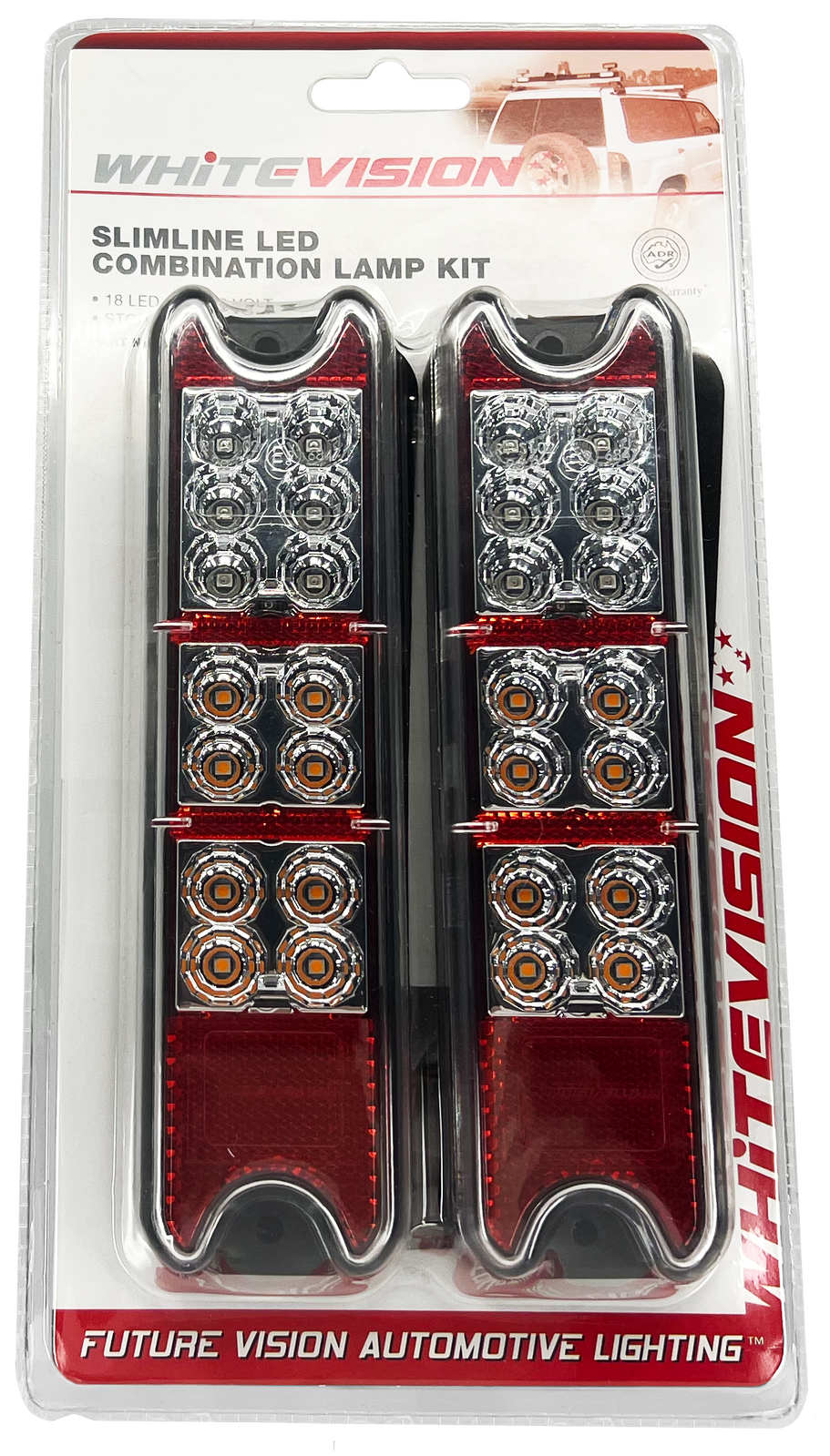

CRL190LEDTWB Slimline Combination Lamp Stop / Tail / Indicator / Reflector 10-30V - Twin Blister
CRL190RLEDTWB Slimline Combination Lamp Stop / Tail / Indicator / Reverse / Reflector 10-30V - Twin Blister
