Product Description

Description

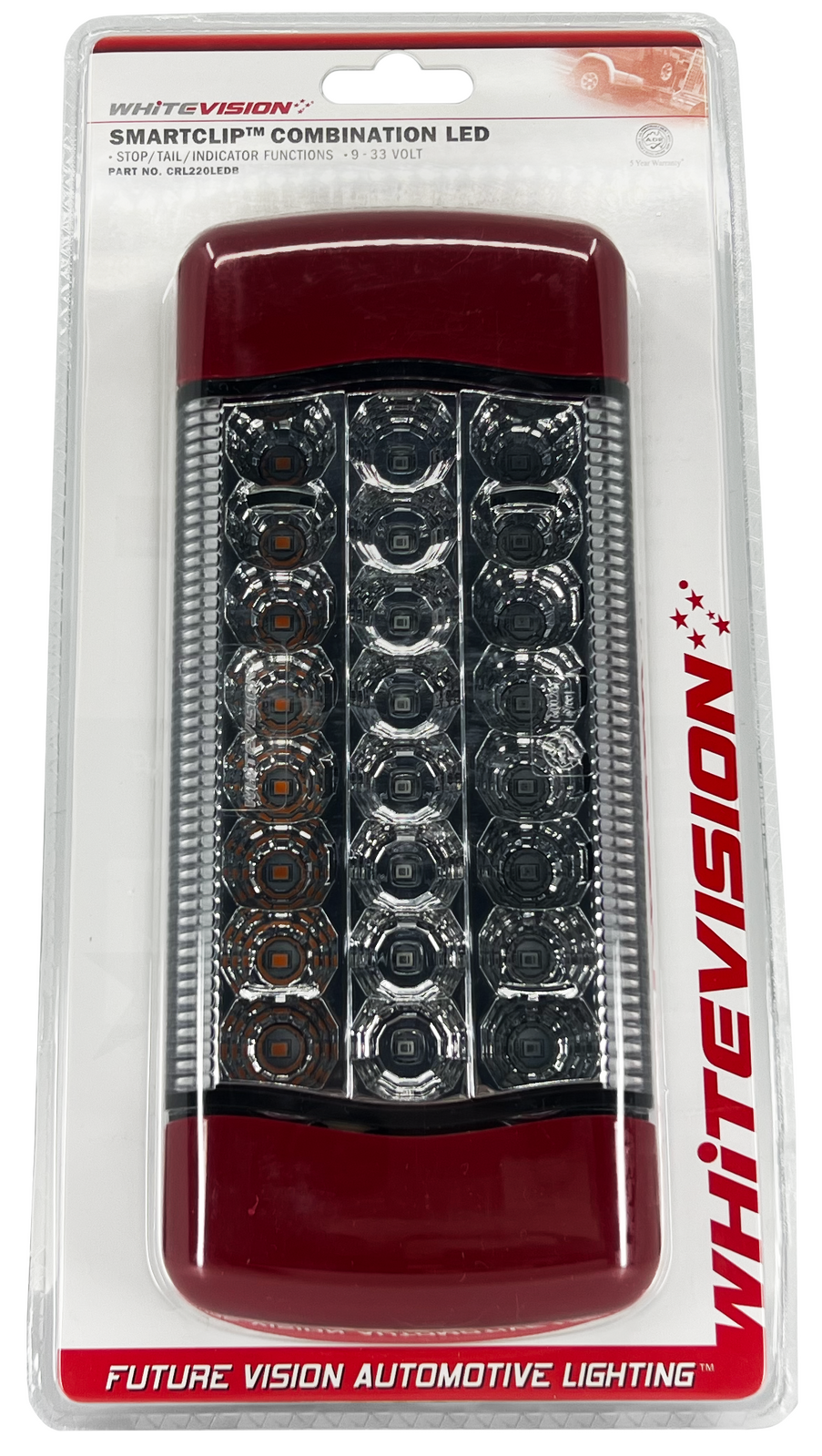

The CRL220LED series is a multifunction rear combination lamp featuring advanced LED optical free form reflector technology to achieve a highly styled robust lamp that can be customised to match modern vehicle and trailer designs. The CRL220LED series is made for heavy duty use and includes a high impact polycarbonate lens and strong ABS Base. ADR compliant for stop, rear position, direction indicator and reverse in a single compact package, the CRL220 series uses SmartClip™ end covers which offer upgradable options. This feature allows for custom options including coloured end clips, integration clips two combine two or three lamps as one and end reflectors for a fully compliant rear lighting solution. Suited to OEM and commercial applications.



Features

  • • Free form optics•High reliability design
  • • Innovative end clip upgrades
  • • Easy customised for specific applications
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reverse
Voltage 9-33V DC VarivoltÆ
Wattage Stop:3W

Rear Position:0.4W

Indicator:3W

Reverse:2.5W
Mounting Base mount with Smart Clip™ covers
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 222x96x34mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00
CRN Pending

Parts List

CRL220LED 220 Series Combination LED 9-33V Stop / Tail / Indicator 0.5M Box
CRL220LEDB 220 Series Combination LED 9-33V Stop / Tail / Indicator 0.5M Blister
CRL220RLED 220 Series Combination LED 9-33V Stop / Tail / Indicator / Reverse 0.5M Box
CRL220RLEDB 220 Series Combination LED 9-33V Stop / Tail / Indicator / Reverse 0.5M Blister
