Product Description

Description

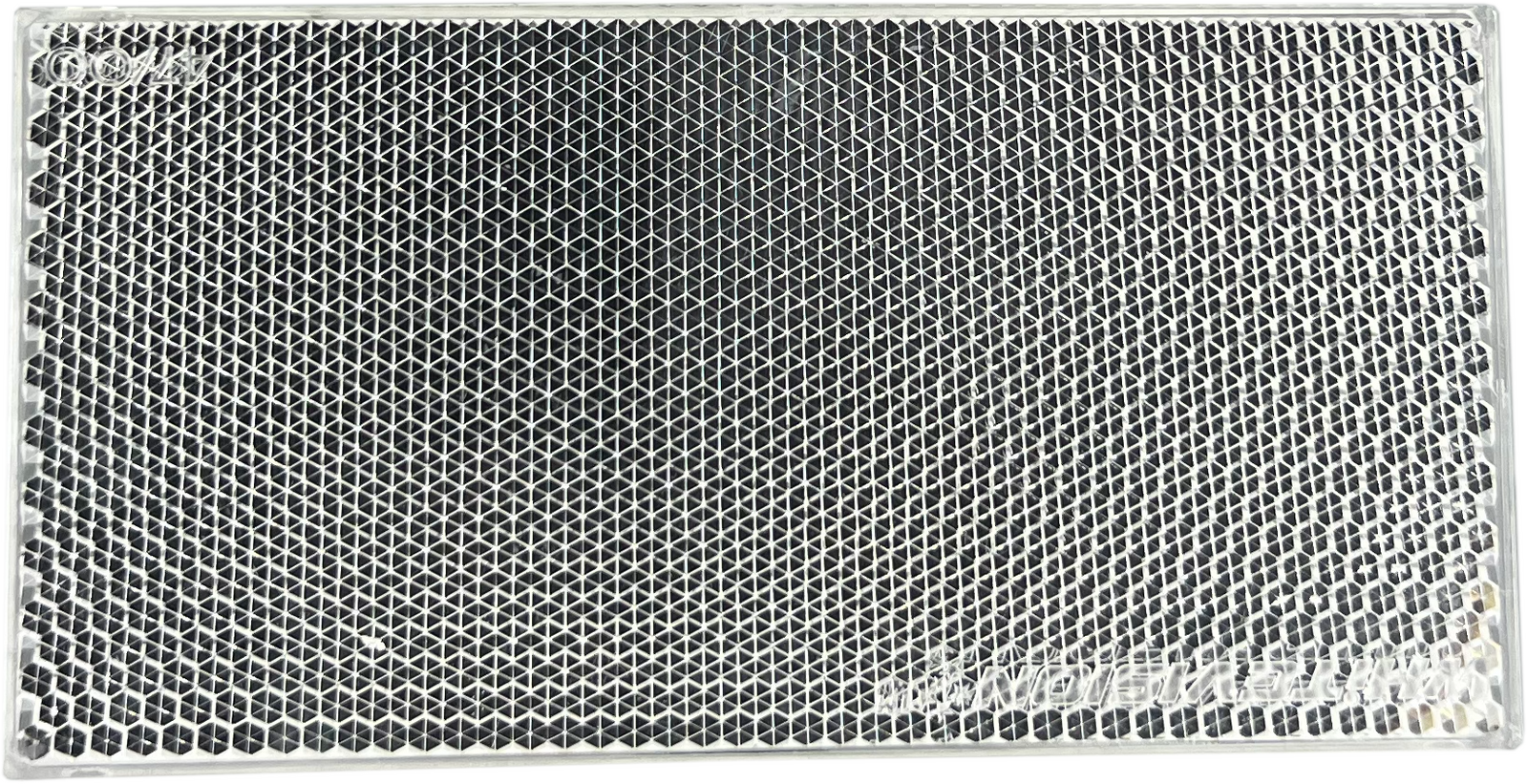

WR101 Series reflex reflectors are constructed from high quality optic prisms resulting in a highly reflective lens for maximum compliance and safety. The WR101 series is a larger size reflex reflector for larger vehicles where maximum reflective surface area is required for compliance and safety. These units feature a high impact PMMA lens and ultrasonically welded base with high grade adhesive for quick, easy and secure fitting.



Features

  • •High grade optic prisms
  • •Ultrasonic welded base
  • •High impact lens
  • •Self adhesive tape
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks•Rigid Bodies•Bus & Coach •Custom Builds
Functions Front / Side / Rear Reflex Reflector
Mounting Self adhesive
Materials High impact PMMA lens, ABS base
Environmental Fully Sealed
Dimensions 100x50x6.5mm
ADR Compliance Front / Side / Rear Reflector ADR 47/00
CRN Certification Side (Amber) 15926 Front (Clear) 15925, Rear (Red) 15940

Parts List

WR101A Amber Reflector Welded White - Self Adhesive 100x45x6.5mm
WR101C Clear Reflector Welded White - Self Adhesive 100x45x6.5mm
WR101R Red Reflector Welded White - Self Adhesive 100x45x6.5mm
WR101A-B Amber Reflector Welded White - Self Adhesive 100x50x6.5mm (2pcs Blister)
WR101C-B Clear Reflector Welded White - Self Adhesive 100x50x6.5mm (2pcs Blister)
WR101R-B Red Reflector Welded White - Self Adhesive 100x50x6.5mm (2pcs Blister)
