Product Description

Description

The BE325 LED Beacon series is an ultra high-quality range featuring Class 1 level light output for total compliance in transport or site applications. The ultrasonically sealed IP67 lens and body design ensures total protection from water or fine dust. Built for heavy-duty applications, the BE325 series is available in various mounting options as well as a lithium self-powered portable option.



Features

  • • 10-30V Varivolt®
  • • Class 1 high specification light output / CISPR 25
  • • IP67 Ultrasonically sealed lens and base
  • • 7 Programable flash modes / 4 rotation modes / 3 flashing modes
  • • Available in Stud, Pole or Magnetic mount
  • • Portable lithium battery power model option with remote control & USB charging cable



Specifications

Specifications

Voltage 10-30V Varivolt®
Power:

ST/MG/PL: 19W

PO: 8.4W

Environmental: IP67 Fully Sealed
Charging Time (PO): 4 hrs
Discharge Time (PO): 6.5 hrs
Mounting:

ST: Stud

MG: Magnetic

PL: Pole P

O: Portable

Certification:

ECE R65/EMC R10

SAE J845 class 1

CISPR 25 class 3

Rotation Modes: Slow anti-clockwise rotation (480ms) Slow clockwise rotation (480ms) Quick anti-clockwise rotation (300ms) Quick clockwise rotation (300ms)
Flashing Modes Single flash Double flash Triple flash



Parts List

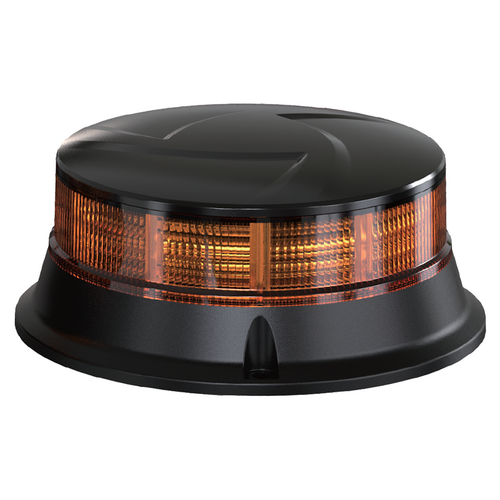

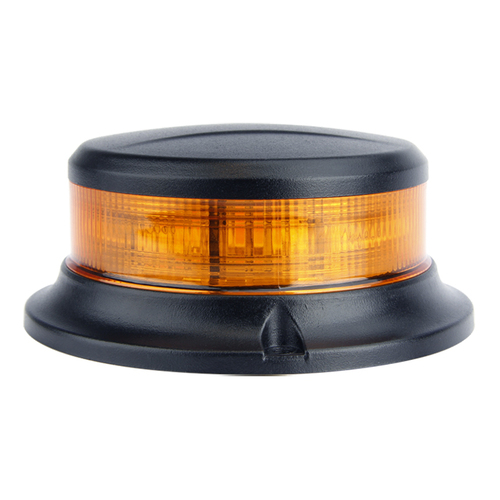

BE325A-ST Stud Mount (108x47mm)

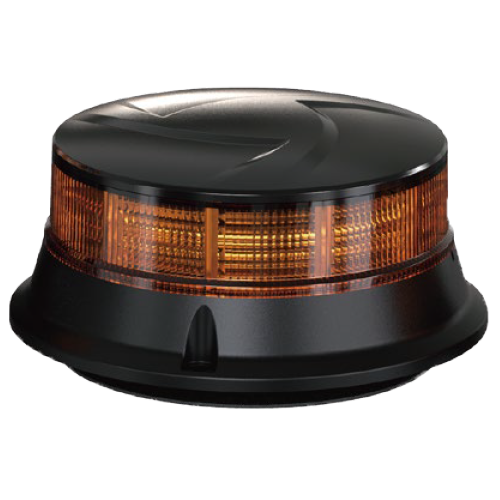

BE325A-MG Magnetic Mount (108x54mm)
BE325A-PL DIN Pole Mount (92x144mm)

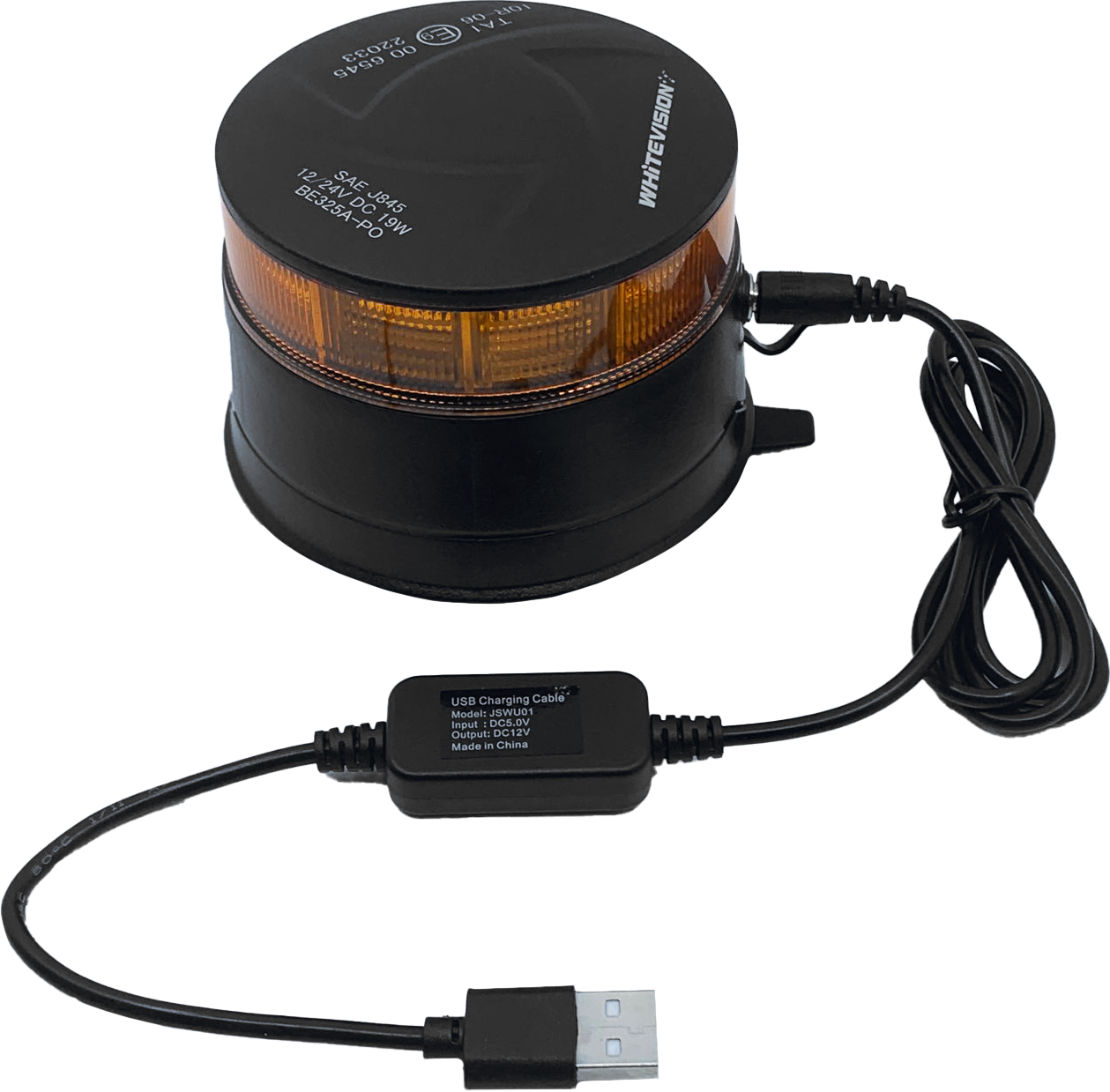

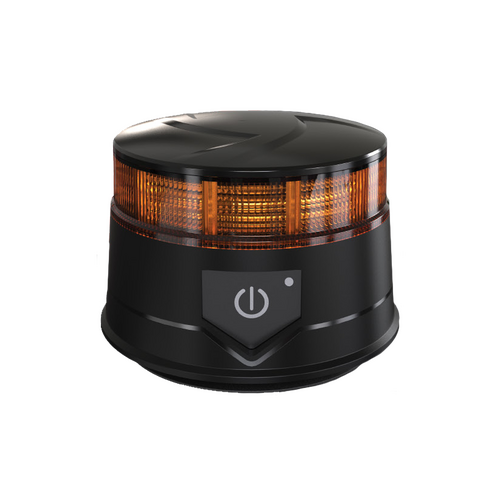

BE325A-PO Portable / Magnetic (130x75mm)

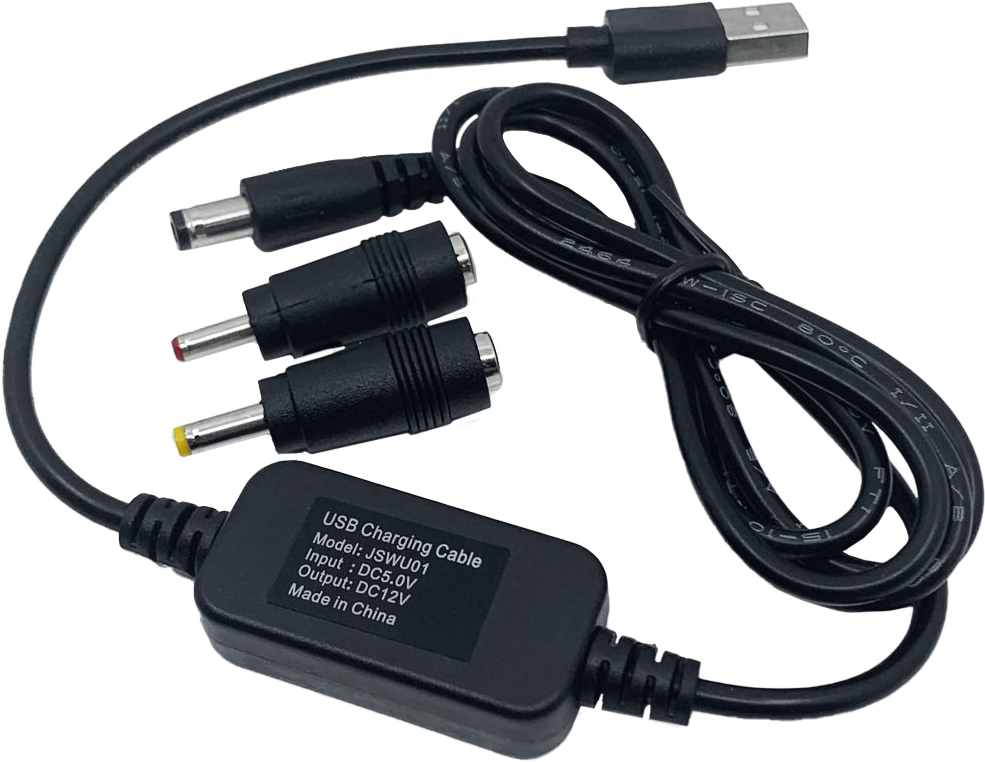

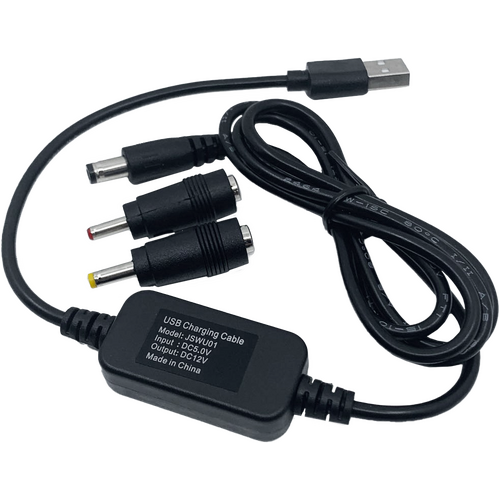

BE325-PO-USBC USB Charging Cable for BE325APO
