Description

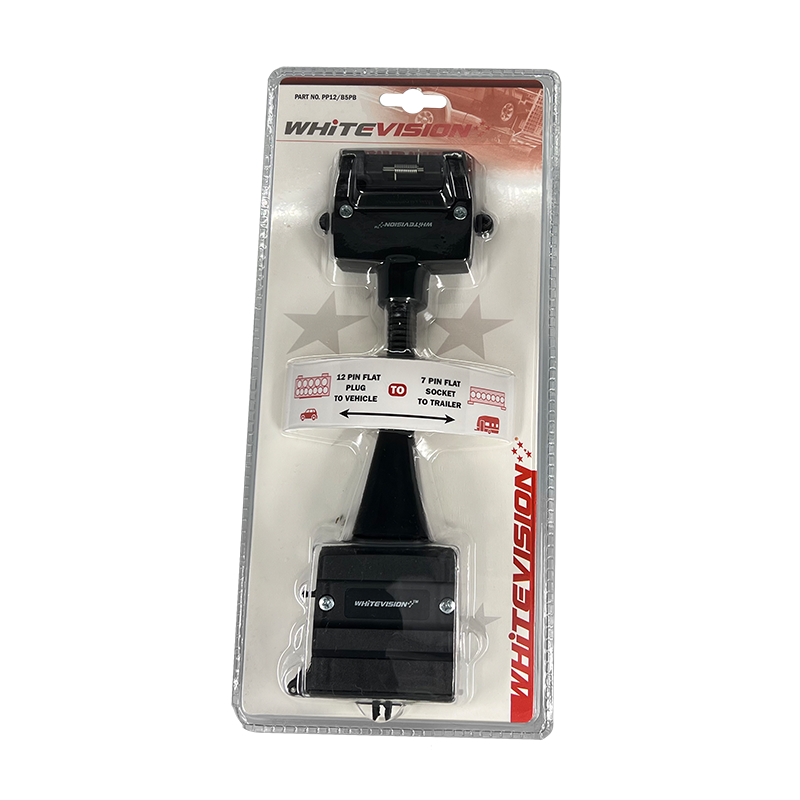

Whitevisionís 12 to 7 Pin adapter range provides an easy solution to connecting vehicles and trailers or caravans when there is either a 12 or 7 pin plug on each. Connections are wired straight through from the 7 pins to the 12 pins, catering for common lighting and auxiliary circuits - perfect for a short term tow.The range includes a 7 pin plug to a 12 pin socket adapter used for applications when the vehicle only has a 7 pin socket and the towed vehicle has a 12 pin plug. A 12 pin plug to 7 pin socket adapter is also available for applications where the vehicle has a 12 pin socket and the trailer or caravan has only a 7 pin flat plug. This makes the connection much more secure and reliable.



Features

  • •7 to 12 pin trailer adapter range
  • •Easy solution for connecting caravans to vehicles
  • •High quality connectors
  • •Flexible, durable design

Specifications

Specifications

Voltage 12V
Contact 15A Small Pin
Current 30A Large Pin
Cable 4-5mm Small
6mm Large
Housing PA Nylon
Mounting Surface
Environmental Cable seal




Wiring Code:

Pin No. Color Connect To:
1 Yellow Left Turn
2 Black Reverse
3 White Earth
4 Green Right Turn
5 Blue Elec Brake
6 Red Stop Lamps
7 Brown Park Lamps
8 Orange 12V+Bat
9 Pink Aux Bat
10 White Earth
11 Grey Rear Fog
12 Violet AUX



Parts List

PP12 Plastic Plug Flat 12 Pin
PP12B Plastic Plug Flat 12 Pin Blister
PS12B Plastic Socket Flat 12 Pin Blister
