Product Description

Description

The new SM8 LED Series markers are designed for the direct replacement of it’s existing incandescent models. The SM8 series is made for heavy duty use which features a high impact acrylic lens and strong ABS base, and is suited to OEM and commercial vehicle applications.

Perfect for upgrading existing incandescent versions to LED.



Features

  • • 9-33 Volt DC integrated circuitry
  • • Clip mount
  • • Retro-fit same incandescent style lamp series
  • • 0.5m Cable
  • • Fully ADR compliant

Specifications

Specifications

Applications • Caravans • Trailers • Boat trailers • Light trucks
Voltage 9-33V DC Varivolt®
Functions Front Clearance Marker: Clear

Side Marker: Amber

Rear Position Marker: Red
Wattage 0.8W – all functions
Mounting Clip mount
Materials High impact acrylic lens
Environmental IP67 Hermetically Sealed
Cable Length 0.5M Standard
Dimensions 90x50x22mm
ADR Compliance Front Clearance Marker: 49/01, Reflector 47/00

Side Marker: 45/01, Reflector 47/00

Rear Position Marker: 49/00, Reflector 47/00
Homologation Certification E-Mark
CRN Pending

Parts List

FM8CLED SM8 Series LED front clearance marker (Clear) – 9-33V
SM8ALED SM8 Series LED side marker (Amber) – 9-33V

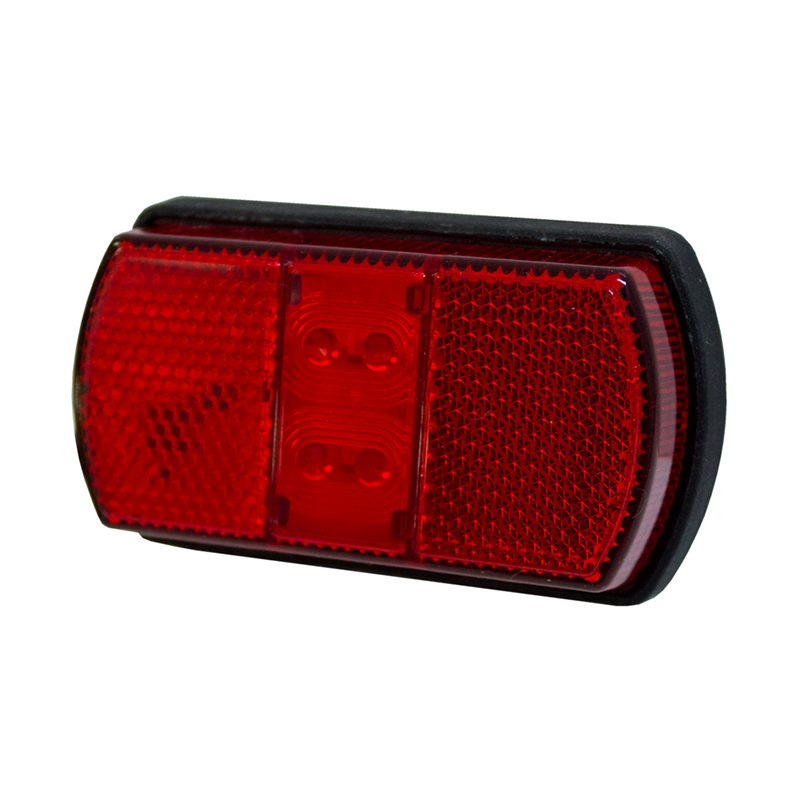

RM8RLED SM8 Series LED rear position marker (Red) – 9-33V
BLISTER OPTIONS
FM8CLEDB SM8 Series LED front clearance marker (Clear) – 9-33V BLISTER PACK
SM8ALEDB SM8 Series LED side marker (Amber) – 9-33V BLISTER PACK
RM8RLEDB SM8 Series LED rear position marker (Red) – 9-33V BLISTER PACK
