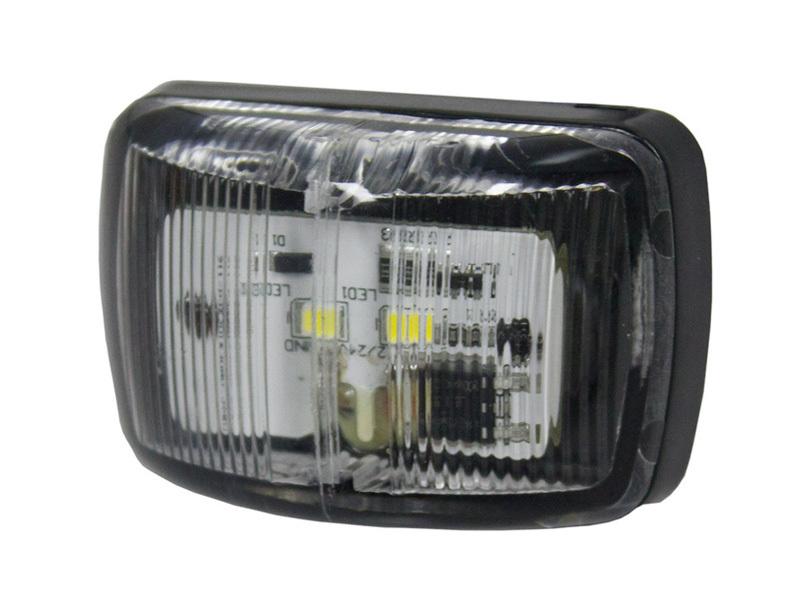

SM62 Series Clear Lens Front Clearance LED Marker (Boxed)

Product Description

Description

The SM62LED series is a compact, low profile LED marker with a highly contoured design for seamless integration with modern vehicle styles. Designed for reliability and performance this range of markers provides ADR compliant solutions for front end outline, rear position, supplementary indicator and side marker functions. Featuring a small footprint design the SM62LED series can be fitted easily where space is limited. With slimline smart clip mounting the clip base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish.

Features

•Low profile LED marker
•Highly aesthetic optics
•Slimline design•Invisible Smart Clip™ mounting
•Fully ADR compliant

Specifications

Applications	•Trucks •Rigid Bodies •Buses & Coaches •Trailers •Boat Trailers •Custom Builds
Functions	Side Marker - Red / Amber, AmberClearance Marker - Clear, Red
Voltage	9-33V DC VarivoltÆ
Wattage	0.4W - all functions
Mounting	Invisible Smart Clip™
Materials	Polycarbonate Lens ABS Body
Environmental	IP67 Hermetically Sealed
Cable Length	0.5M Standard, 3M Optional
Dimensions	57x35x21mm
ADR/CRN	SM62RALED - Side Marker:45/01 - 46229 SM62ALED - Side Marker: 74/00 - 46227 RM62RLED - Rear Position: 49/00 - 46522 FM62CLED - Front End Clearance: 49/00 - 46226

Parts List

SM62RALED	62 Series Side Marker 9-33V Red / Amber (Red/Amber Lens) 0.5M
SM62ALED	62 Series Side Marker 9-33V Amber (Amber Lens) 0.5M
RM62RLED	62 Series Rear Marker 9-33V Red (Red Lens) 0.5M
FM62CLED	62 Series Front Clearance Marker 9-33V Clear (Clear Lens) 0.5M
3 METRE CABLE OPTIONS
FM62CLED-3	62 Series Front Clearance Marker 9-33V Clear (Clear Lens) 3.0M
SM62RALED-3	62 Series Side Marker 9-33V Red / Amber (Red/Amber Lens) 3.0M
BLISTER OPTIONS
SM62RALEDB	62 Series Side Marker 9-33V Red / Amber (Red/Amber Lens) BLISTER PACK
SM62ALEDB	62 Series Side Marker 9-33V Amber (Amber Lens) BLISTER PACK
RM62RLEDB	62 Series Rear Marker 9-33V Red (Red Lens) BLISTER PACK
FM62CLEDB	62 Series Front Clearance Marker 9-33V Clear (Clear Lens) BLISTER PACK
