Product Description

Description

SM60 Series LED lamps are versatile heavy-duty markers designed for performance and reliability. The SM60 series provides a complete styled marker solution for forward, side, and rear marker/repeater functions and features intelligent angled optics providing maximum safety and compliance while matching modern vehicle style. The low profile and compact design allows for a wide range of fitting applications where space is limited. An innovative mounting system uses a Smart Clip™ module and base design for secure fitting. Suited to OE and commercial applications. Integrated super seal connector options are also available.



Features

  • • Heavy-duty marker solution
  • • Intelligent optics for maximum safety and compliance
  • • Secure Smart Clip™ mounting
  • • Optional integral super-seal connector
  • • Fully ADR compliant

Specifications

Specifications

Voltage: 9-33V
Power: 0.36W
Lens: High Impact PMMA
Housing: ABS
Mounting: Smartclip™ surface mount
Environmental: IP67
CTA:
RM60R3LED CTA-060528
SM60A3LED CTA-060519
FM60C3LED CTA-060527
RM60AA3LED CTA-060526
SM60RA3LED CTA-060518

Parts List

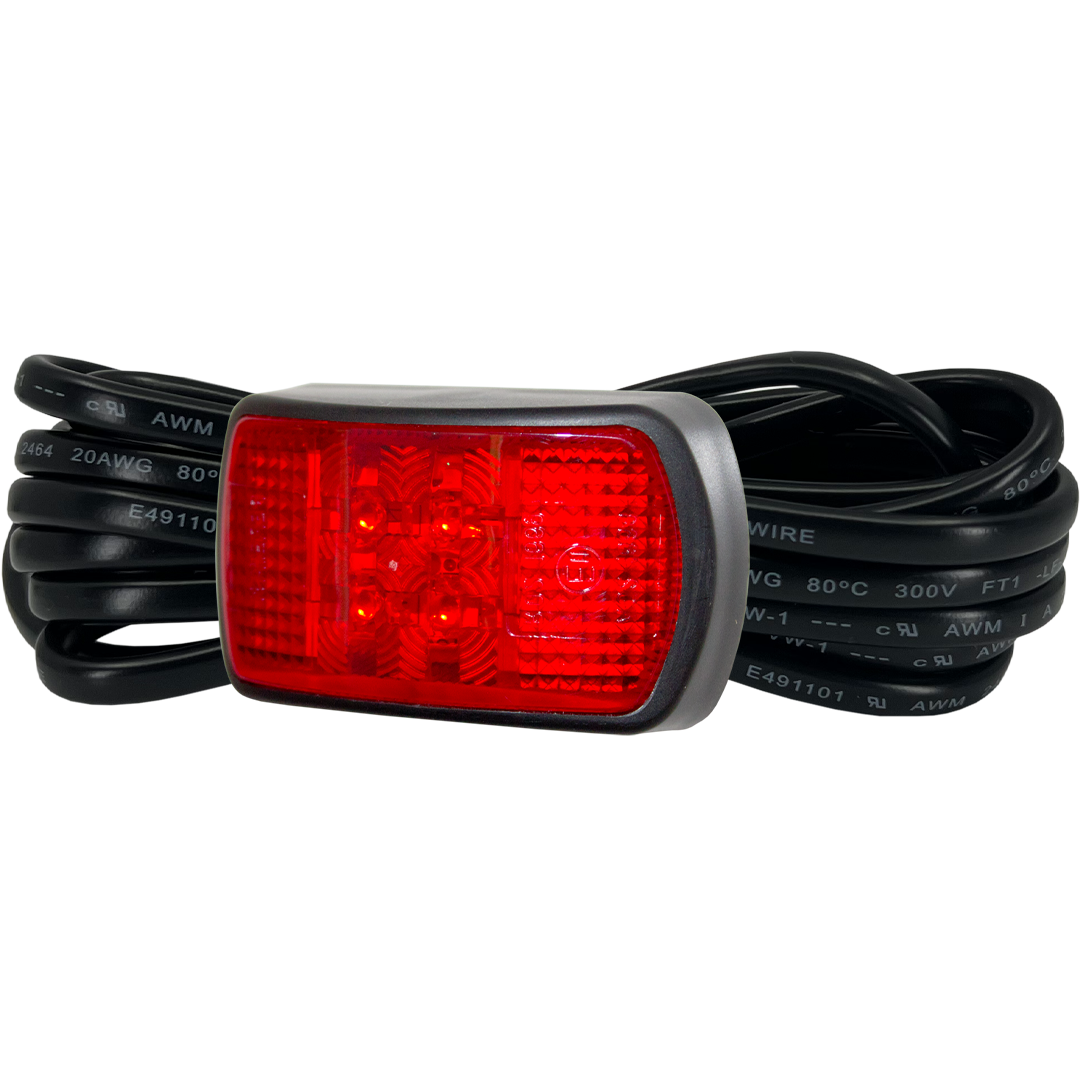

RM60R3LED Red 'Dimple' LED Maker - 3m cable
SM60A3LED Amber 'Dimple' LED Side Marker / Sub Side Flasher - 3m cable
FM60C3LED Clear 'Dimple' LED Marker - 3m cable
RM60AA3LED Amber 'Dimple' LED Front Marker - 3m cable
SM60RA3LED Red/Amber 'Dimple' LED Side Marker - 3m cable
AM60SS Green 'Dimple' LED Warning Marker w/ Superseal Connection
