Product Description

Description

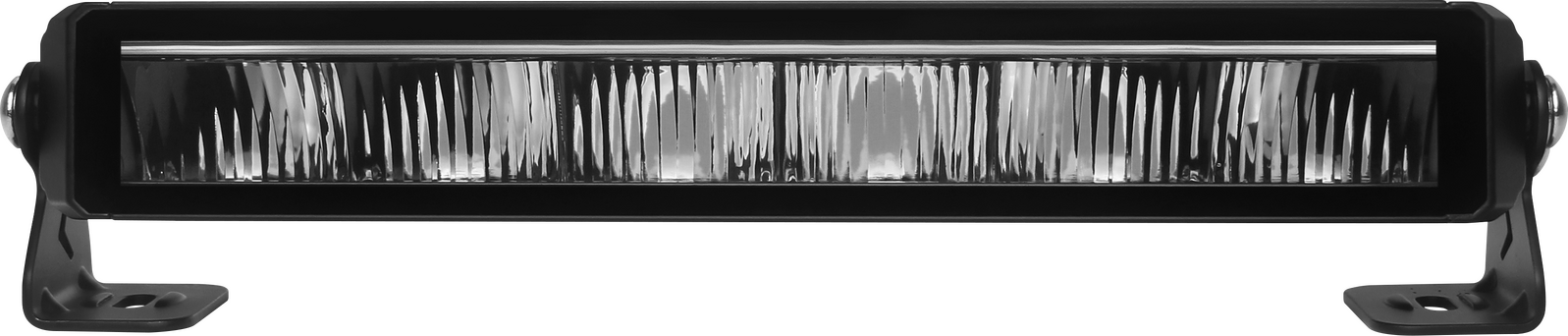

Rayzer™ Series single-row LED light bars use the latest free-form optics to provide outstanding lighting performance with a visually appealing style. Superior light output using Broadbeam technology achieves a long-reaching and wide consistent beam ideal for any driving situation. The Rayzer™ series features an integrated position / DRL light for enhanced safety and includes a comprehensive stainless steel mounting kit. Constructed from high-grade anodized aluminum, sealed to IP67, and fitted with a virtually indestructible polycarbonate lens Rayzer™ Series LED bars are truly built for the long haul.



Features

  • • Low Profile
  • • Multifunctional
  • • Powerful combination beam
  • • Free-form reflector technology for consistent light
  • • Heavy-duty commercial quality
  • • ECE Approved



Specifications

Specifications

Voltage: 10-30V Varivolt®
Power:

45W 12”

75W 22”

120W 32”

150W 42”

Lumen

4500lm 12”

6500lm 22”

10000lm 32”

12500lm 42”

Lens: PC
Housing: Aluminium
Mounting: Bracket Mount
Environmental: IP67
Dimensions: 12” 345 x 75 x 65
  22” 545 x 75 x 65
  32” 845 x 75 x 65
  42” 1045 x 75 x 65

Parts List

LLB1112 Rayzer 12” Single Row Light Bar, With Park 9-33V
LLB1122 Rayzer 22” Single Row Light Bar, With Park 9-33V
LLB1132 Rayzer 32” Single Row Light Bar, With Park 9-33V
LLB1142 Rayzer 42” Single Row Light Bar, With Park 9-33V
