Product Description

Description

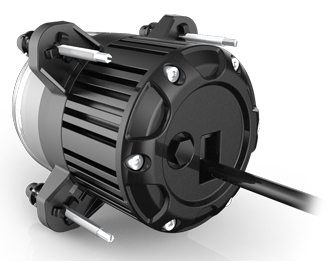

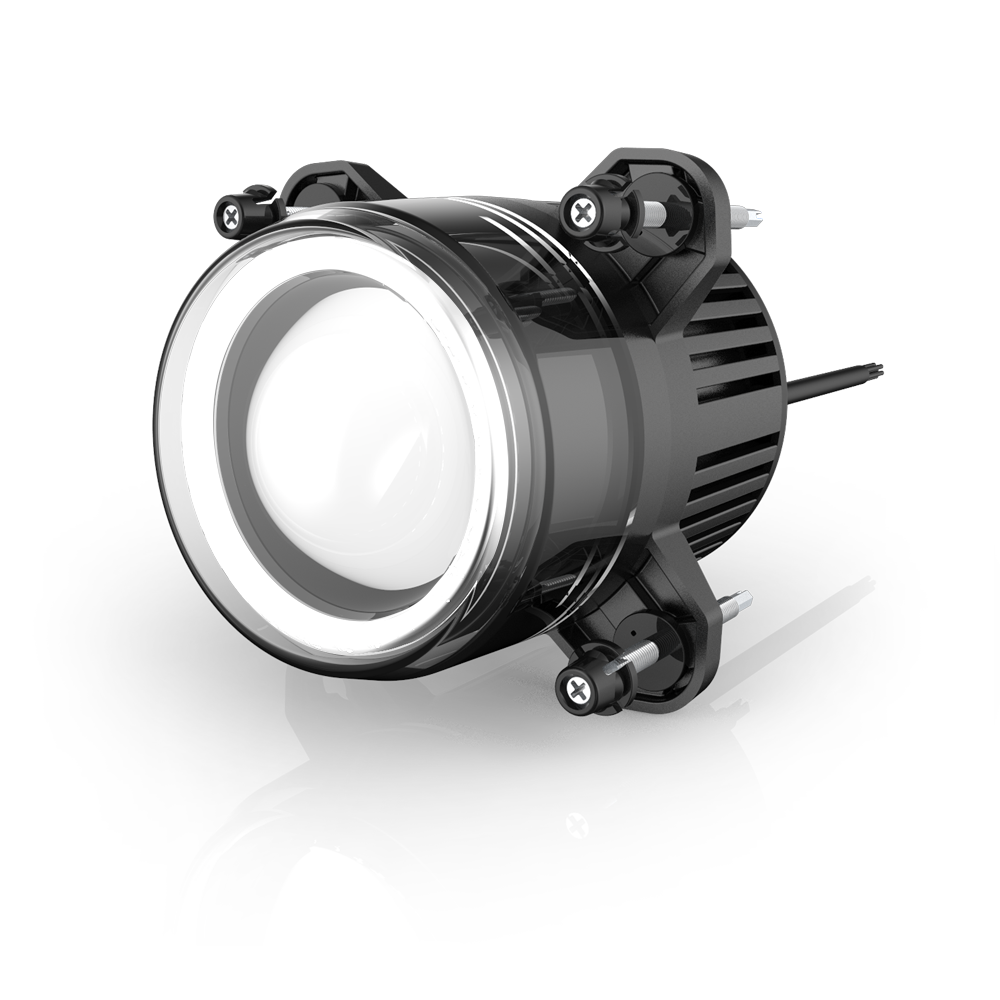

The LHL90 headlamp series features ECE approved high or low beam functions with integrated front position and daytime running light. It is the ultimate headlamp solution for commercial forward lighting applications. Constructed with heavy-duty polycarbonate lens and diecast aluminium body, the LHL90 is designed for high-reliability and performance. The headlamp also features multiple mounting points for easy fitting and beam adjustment, making it ideally suited to commercial and OE applications.



Features

  • •High or Low beam w/integrated front position and DRL functions
  • •Highly aaesthetic lens design
  • •Advanced optics for clear distant high beam illumination
  • •High quality PC lens and diecast aluminium body
  • •Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Buses and Coaches •Custom builds
Functions High or Low Beam Headlight with Front Position and DRL
Voltage 9-33V VarivoltÆ
Wattage High Beam 16.8W /DRL 6.0WFront Position 0.5W
Mounting Multi-mounting points w/ easy beam adjustment
Materials Polycarbonate lens / Diecast Aluminum body
Environmental Fully sealed and waterproof IP67
Dimensions 110mm x 110mm x 127mm deep
Homologation Certification ECE R7/ECE R87/ECE R112 Class B

Parts List

LHL90H 90mm LED Headlight High Beam with Front position/DRL - Box
LHL90L 90mm LED Headlight Low Beam with Front position/DRL - Box
