Product Description

Description

The CRL600LED is a heavy duty modular combination lamp featuring four 95MM round module pods and heavy duty casing. Designed for commercial and industrial environments the lamp features two stop / rear position modules, one rear direction indicator module and one reverse module. The modules can be easily configured to differing requirements and have integral LED loading options. The heavy duty housing can be fully sealed to suit dangerous goods vehicle class applications and accommodates custom wiring and connectors. Suited for OE and heavy vehicle applications.



Features

  • •Heavy duty modular pod system
  • •Easily configurable rear lighting
  • •360 degree lamp and housing sealing
  • •Optional LED loading for compatibility
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Heavy Trailers •Dangerous Goods
Functions Stop / Rear Position / Rear Direction Indicator / Reverse
Voltage 12V or 24V options
Wattage Stop:4.92W@12V

Rear Position:2.92W@12V

Rear Direction Indicator:4.92W@12V
Mounting Surface Mount, Modular System
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.2M Per Module
Dimensions 420x113x95mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00
Homologation Certification ECE (Emark)

Parts List

CRL600LED-12V Four Pod Combination Lamp 2 x Stop Rear Position, 1 x Rear direction indicator, 1 x Reverse - 12Volt - Box
INDIVIDUAL LAMP INSERTS
SL9LED-12V 95mm Round Stop / Rear Position Module 12V - Box
SL9LED-24V 95mm Round Stop / Rear Position Module 24V - Box
FL24LED-12V 95mm Round Front Direction Indicator Module 12V - Box
FL24LED-24V 95mm Round Front Direction Indicator Module 24V - Box
FL25LED-12V 95mm Round Rear Direction Indicator Module 12V - Box
FL25LED-24V 95mm Round Rear Direction Indicator Module 24V - Box

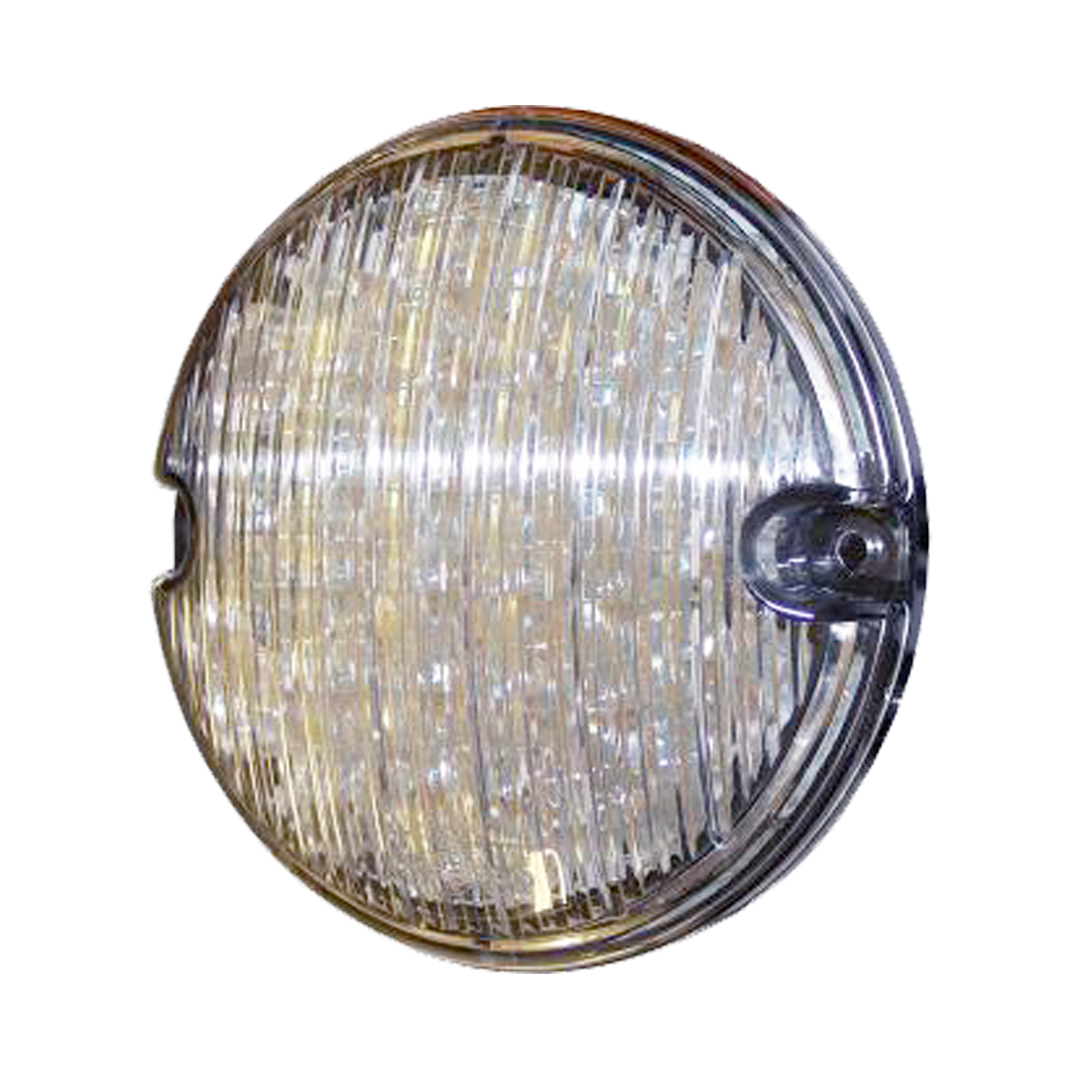

RL800LED-12V 95mm Round Reverse Module 12V - Box
RL800LED-24V 95mm Round Reverse Module 24V - Box
CRL600LEDMOD 4 Pod Modupod for 95mm Lamps
