Product Description

Description

Designed with a smart and modern slimline look, the 260 Series is a robust multifunction lamps that can be mounted in areas where space is limited. Featured 10 - 33 VarivoltÆ DC integrated circuitry technology, incorporating stop, tail, indicator and reverse functions providing an all in one rear signal solution.The Series is fully ADR compliant, making it the complete package, perfectly suited to OEM and commercial vehicle applications.



Features

  • •Slim line design - multifunctions
  • •10 - 30 Varivolt
  • •Surface screw mounting
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Caravans •Trailers •Minebars •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reverse
Voltage 9-33V DC VarivoltÆ
Wattage Indicator: 2.5W

Stop: 3W

Tail: 0.5W

Reverse: 2.5W
Mounting Surface mount, screw on
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 259x82x17mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00
CRN Pending

Parts List

CRL260LEDB 260 Series SlimLine Combination Lamp Stop / Tail / Directional Indicator 10-30V

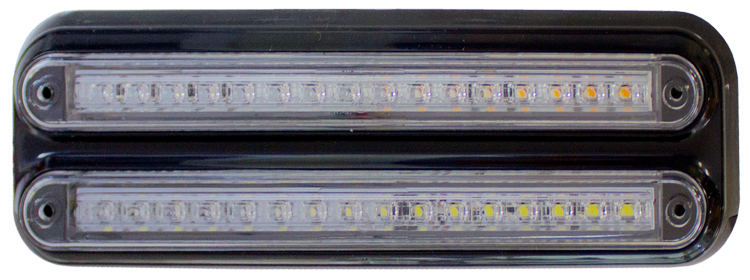

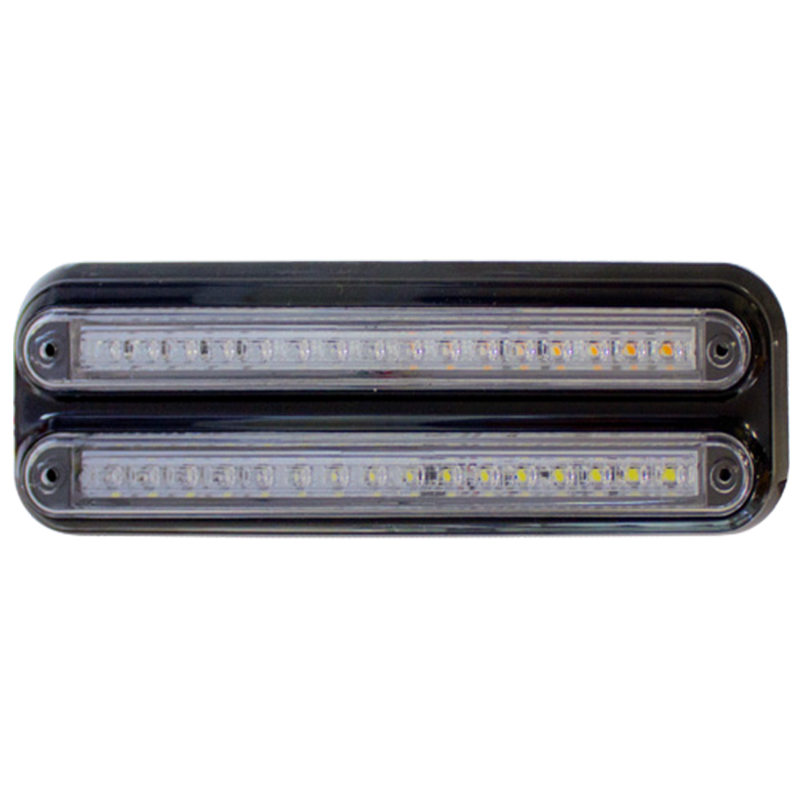

CRL260RLEDB 260 Series SlimLine Combination Lamp Stop / Tail / Directional Indicator / Reverse 10-30V

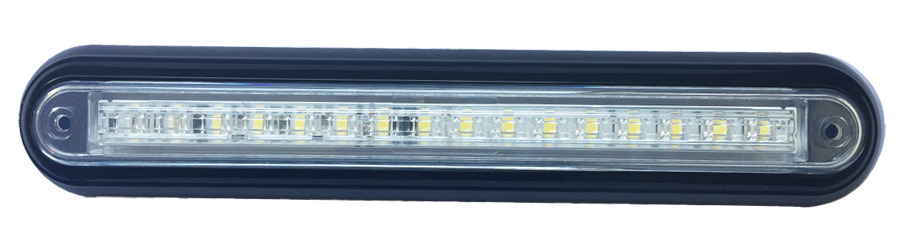

RL260SDLEDB 260 Series SlimLine Single Combination Stop / Tail / Indicator Lamp 10-30V - Clear Lens
